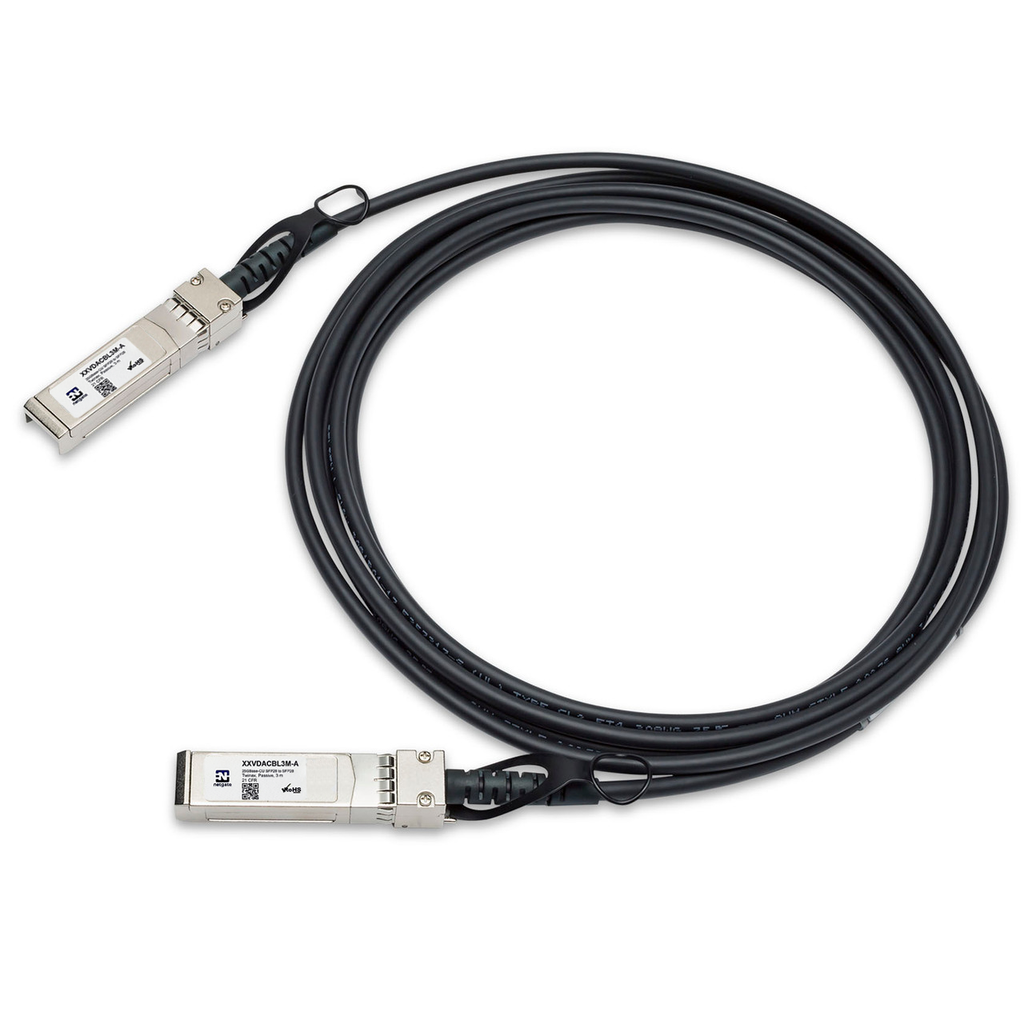

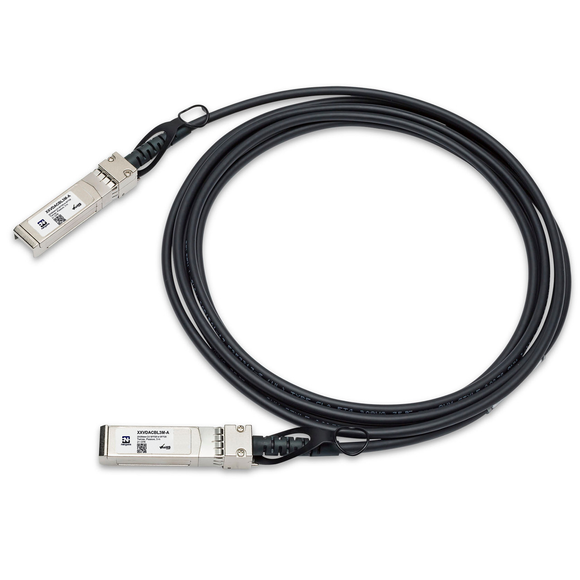

25GBASE-CR SFP28 DAC Direct-Attached Copper Twinax Passive Cable (3 Meters)



25G SFP28 DIRECT-ATTACH COPPER TWINAX PASSIVE CABLE

FOR USE WITH NETGATE AND INTEL® 25Gb PCIe NICs

SFP28 Copper Twinax cable suitable for very short distances.  This SFP28 direct attach twinax cable assembly supports 25 Gigabit Ethernet / 25GBase-CR.  Suitable for networking, storage, and telecom industries. Used in applications such as data center cabling infrastructure, SAN, NAS, & other storage servers.

FEATURES

• SFP28 to SFP28 Connector
• Copper Passive
• 3 Meters
• AWG30 - Solid Copper, Silver Plated
• Data rate up to 25.78 Gbps
• Compliant to SFP MSA
• Compatible with Intel and other MSA manufacturers*.
• Low power consumption (<.2 W (Less than .1 W per side))
• Commercial Temperature - 0°C to 70°C
• IEEE P802.3by, SFF-8402, SFF-8419, SFF-8432, SFP28
• RoHS, VDE, UL & CSA Compliant


*Some equipment manufacturers engage in vendor lock-in practices that require you to source their particular cable.  They deliberately break compatibility with "generic" SFP+ cables by adding a firmware check to enable their own cables and modules.  If you will be connecting to a Cisco, HP-Procurve, H3C/3COM, Brocade/Broadcom, etc. you may need a different cable.

WARRANTY AND SUPPORT

• No returns
• 10-Year Serviceable Limited Lifetime Manufacturer’s Warranty
• All information subject to correction


---
